TROXNETCOM AS-I CONFIGURATIONS



Back to TROXNETCOM Overview



THERE ARE TWO STANDARD CONFIGURATIONS FOR SIMPLE SYSTEMS OF UP TO 30 OR 60 DAMPERS.

  • 30 FIRE DAMPERS
  • 60 FIRE DAMPERS
  • AS-I REPEATERS

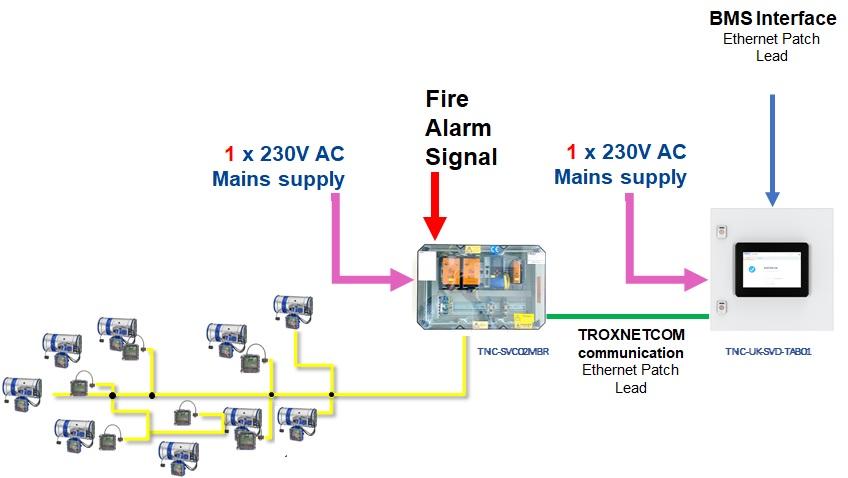

30 FIRE DAMPERS


TNC-UK-SVD-TAB01 USER AND BMS INTERFACE WITH TOUCHSCREEN

  • 10.4 inch touch screen with TROXNETCOM user software
  • BMS interface via Ethernet patch lead BACnet IP or Modbus TCP
  • 500 × 500 × 210 mm Enclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal
  • Interface to TROXNETCOM AS-i. controllers via an ethernet patch lead.
  • 5 port Ethernet switch


TROXNETCOM AS-I. CONTROLLER TNC-SVC02MBR

  • 1 × TNC-A1412; 1 × TNC-A1258, 1 × TNC-D1030, 1 × Z0094
  • Single AS-i. Master with power supply for up to 30 fire dampers ZA07 control code in a preconfigured switch box
  • Single mains 230VAC connection
  • 1 Fire alarm input, 1 function test input, 1 system healthy output, 1 damper closed output, 1 maintenance run output.
  • Fieldbus cabling up to 100m Maximum. Repeaters are optional
  • Commissioning by TROX Service
  • Optional touch screen with BMS interface.

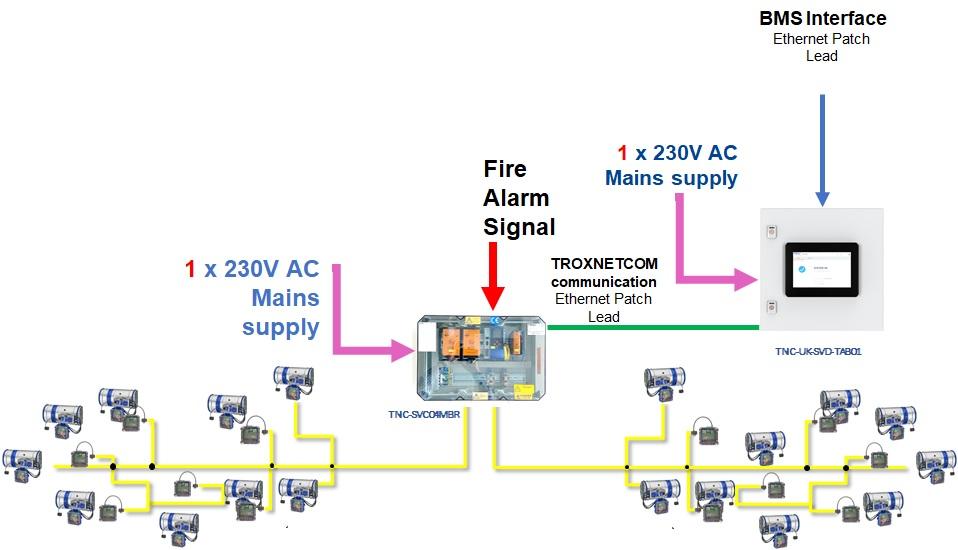

60 FIRE DAMPERS


TNC-UK-SVD-TAB01 User and BMS interface with Touchscreen

  • 10.4 inch touch screen with TROXNETCOM user software
  • BMS interface via Ethernet patch lead BACnet IP or Modbus TCP
  • 500 × 500 × 210 mm Enclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal
  • Interface to TROXNETCOM AS-i. controllers via an ethernet patch lead.
  • 5 port Ethernet switch


TROXNETCOM AS-I. CONTROLLER TNC-SVC02MBR

  • 1 × TNC-A1412; 2 × TNC-A1258, 1 × TNC-D1030, 1 × Z0094
  • Dual AS-i. Master with power supply for up to 60 fire dampers ZA07 control code in a preconfigured switch box
  • Single mains 230VAC connection
  • 1 Fire alarm input, 1 function test input, 1 system healthy output, 1 damper closed output, 1 maintenance run output.
  • Fieldbus cabling up to 100m Maximum for each Fieldbus. Repeaters are optional.
  • Commissioning by TROX Service.
  • Optional touch screen with BMS interface.

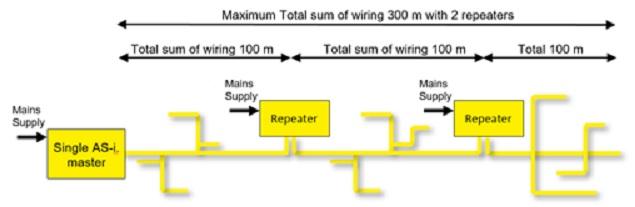

AS-I REPEATERS


REPEATERS ARE USED WHEN YOU NEED TO EXTEND THE LENGTH OF THE AS-I FIELDBUS.


TNC-SVR02

  • Each repeater extends network by 100m
  • Maximum of 2 repeaters per ASi segment
  • Maximum ASi segment length = 300m i.e.



SYSTEM COMPONENTS FOR CONNECTING 30 FIRE DAMPERS

TNC-SVC04MB (example) 00133840_0

TNC-SVC02MBR

Pre-configured AS-i switchbox with a single master AS-i controller, to connect up to 30 motorised fire dampers.



TNC-SVC02MBR Switchbox

TNC-UK-SVD-TAB01

Pre-configured communication master and touch screen for the rapid implementation and adjustment of control systems



TNC-UK-SVD-TAB01 Comms Master and Touch Screen

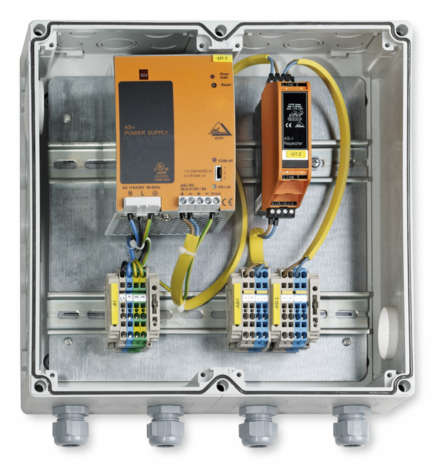

TNC-SVR01/TNC-SVR02 00134685_0

TNC-SVR02

Pre-configured AS-i switchbox with an AS-i repeater to create an additional segment and extend the AS-i fieldbus by a further 100m length. Repeaters can be connected in series up to three segments to create a fieldbus that contains 300m of cable.


TNC-SVR02 Repeaters

SYSTEM COMPONENTS FOR CONNECTING 60 FIRE DAMPERS

TNC-SVC04MB (example) 00133840_0

TNC-SVC04MBR

Pre-configured AS-i switchbox with a dual master AS-i controller, to connect up to 60 motorised fire dampers.



TNC-SVC04MBR Switchbox

TNC-UK-SVD-TAB01

Pre-configured communication master and touch screen for the rapid implementation and adjustment of control systems



TNC-UK-SVD-TAB01 Comms Master and Touch Screen

TNC-SVR01/TNC-SVR02 00134685_0

TNC-SVR02

Pre-configured AS-i switchbox with an AS-i repeater to create an additional segment and extend the AS-i fieldbus by a further 100m length. Repeaters can be connected in series up to three segments to create a fieldbus that contains 300m of cable.


TNC-SVR02 Repeaters



TROXNETCOM COMPONENTS AND CONFIGURATIONS

TROXNETCOM AS-I

TROXNETCOM components




Discover TROXNETCOM AS-i components

TROXNETCOM AS-I LARGE MOTORISED FIRE DAMPER SYSTEMS

It is possible to design larger TROXNETCOM AS-i systems where up to 1735 AS-i enabled dampers can be controlled by one system.  By networking multiple TROXNETCOM AS-i preconfigured switch boxes together the system can be built up in a modular fashion.


TROXNETCOM for Large Fire Damper Systems

TROXNETCOM AS-I CONTROL OF SMOKE CONTROL DAMPERS

Where smoke extraction is required in a building TROXNETCOM AS-i can be configured to control smoke control dampers compliant to BS EN 12101-8 which form part of a larger smoke and heat control system as described in BS  ISO 21927-9.


TROXNETCOM for Smoke Control Damper Systems
