TNC-UK-SVD-TAB01

PRE-CONFIGURED COMMUNICATION MASTER AND TOUCH SCREEN FOR THE RAPID IMPLEMENTATION AND ADJUSTMENT OF CONTROL SYSTEMS

  • Space saving, compact design
  • For integration with TROXNETCOM AS-i. controllers
  • All components are already wired to rail mount terminals
  • Quick, error free assembly and installation
  • Robust design
  • With TROXNETCOM Basic User Software for rapid and safe commissioning and
  • configuration
  • Integral display, also for operation - BMS interface - BACnet IP or Modbus TCP

Technical information

  • FUNCTION
  • TECHNOLOGY
  • SPECIFICATION TEXT
  • ORDER CODE

TNC-UK-SVD-TAB01

Pre-configured communication master and touch screen

The TNC-UK-SVD-TAB01 incorperates a 10.4" touch screen and TNC-HCM communications master which allows users to interact with the TROXNETCOM AS-i system for monitoring and management of the system.

It comes pre-installed with TROXNETCOM Basic User Software and provides an interface to the central BMS system. TNC-HCM communications master manages communication between one or more AS-i controllers.


DescriptionTNC-UK-SVD-TAB01

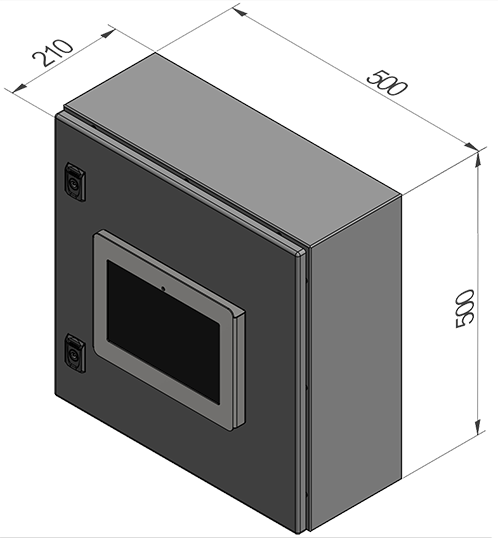

Casing dimensions (B × H × T)500 × 500 × 210 mm
Casing materialEnclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal
Wired components1 x TNC-HCM, 1 x TNC-D1030, 10.4 inch touch screen, 5 port network switch
Mains supply230 V AC, 50 Hz
Max. current2:00 AM
Pre fuse10 A
Protection levelIP 65
ColourRAL 7035

TNC-UK-SVD-TAB01

Pre-configured communication master and touch screen

  • Dimension: 500 × 500 × 210 mm
  • Housing material: Sheet steel, all-round foamed-in PU seal
  • Components: completely installed and wired except for
  • terminal blocks
  • TNC-HCM Communications master
  • Switching power supply: TNC-D1030 = 1.3 A
  • 10.4" colour display, touch screen
  • Network switch for Modbus TCP ethernet connection
  • Make: TROX UK Ltd or equivalent


TNC-UK-SVD-TAB01

Pre-configured communication master and touch screen

Downloads

product information

  • TNC-UK-SVD-TAB01 Technical Data Sheet

    TNC-UK-SVD-TAB01_2023_04_UK_en | Technical Data Sheet 240 KB pdf

operation manuals

  • TROXNETCOM AS-i Installation and Operating Manual

    TNC_AS-i_IOM_V1_2024_06_UK_en  | Installation and Operating Manual 2,3 MB pdf

  • TROXNETCOM AS-i TNC-UK-SVD-TAB01 Wiring Diagram

    TNC-UK-SVD-TAB01_2023_01_UK_en (00X310)  | Wiring Diagram 140 KB pdf
