Product Focus: Chilled Beams from TROX UK


TROX UK DESIGN, TEST AND MANUFACTURE CHILLED BEAMS

WHY SELECT CHILLED BEAMS?

  • Chilled beams are an energy efficient solution that is easy to install
  • With no moving parts, chilled beams need minimal ongoing maintenance
  • Are ideal for both owner occupiers or spaces requiring future configuration flexibility (future proofing)
  • Can be hidden behind architectural ceiling panels, integrated into the ceiling or as a part of an exposed ceiling
  • Multi service chilled beams can be tailored to the project needs and incorporate services (lighting, sensors, wifi, speakers, sprinklers etc) for an exposed/clean ceiling
  • Are ideal for a range of applications, including: offices, hospitals and healthcare, hotels and education/universities


Contact us to see TROX's chilled beam reference projects or to discuss your project requirements.


Chilled beams from TROX

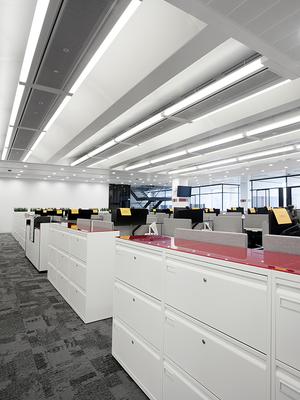

References and installation images
"An Introduction to Chilled Beams and Ceilings"

CHILLED BEAM OPTIONS FROM TROX UK: STANDARD OR MULTI-SERVICE CHILLED BEAMS (MSCB)


  • ACTIVE
  • PASSIVE
  • MSCB
DID614 -  Four-way  air discharge
L: 593 to 1248 mm
W: 593, 598, 618, 623 mm
H: 230, 245 mm
8 - 83 l/s, 30 - 300 m3/h
Cooling capacity up to 2170 W
Heating capacity up to 3000W


DID312 - Two-way air discharge
L:: 893 to 3000 mm
W: 293, 300, 312 mm
H: 210, 241 mm
5 - 70 l/s; 18-252 m3/h
Cooling capacity up to 1830 W
Heating capacity up to 1240W


DID632 - Two way air discharge
L: 893 to 3000m
W: 593 to 623 mm
H: 210 mm
6 - 85 l/s. 22 - 306m3/h
Cooling capacity up to 2450 W
Heating Capacity up to 2970 W


DID-E - One-way air discharge for installation into walls e.g. hotel rooms
L: 948, 1248, 1548 mm
W: 550, 614 mm
H: 200 mm (plus induced air grille)
10 - 78l/s, 36 - 281 m3/h
Cooling capacity up to 1730 W
Heating capacity up to 1480 W

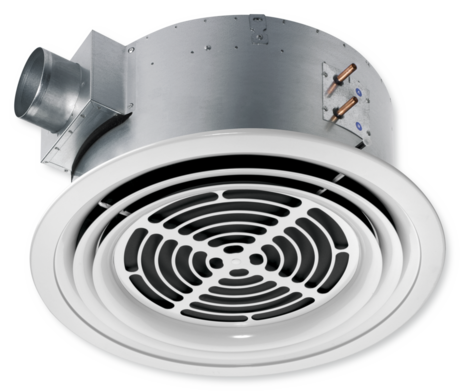

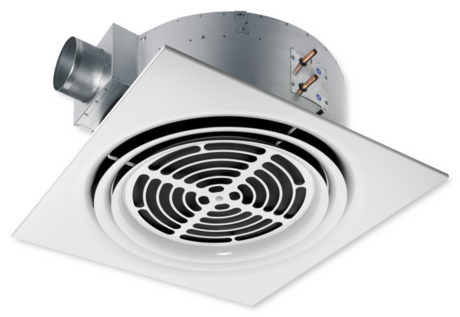

DID-R - radial air discharge, circular or square diffuser face
Circular Ø: 598 mm
Square: 593, 598, 618, 623 mm
H: 250 mm
12 - 25 l/s  43 - 90 m3/h
Cooling capacity: up to 560W
Heating capacity: up to 500W

Principle of operation – DID614 00187758_0
① Conditioned fresh air (primary air)
② Supply air
③ Room air (secondary air)

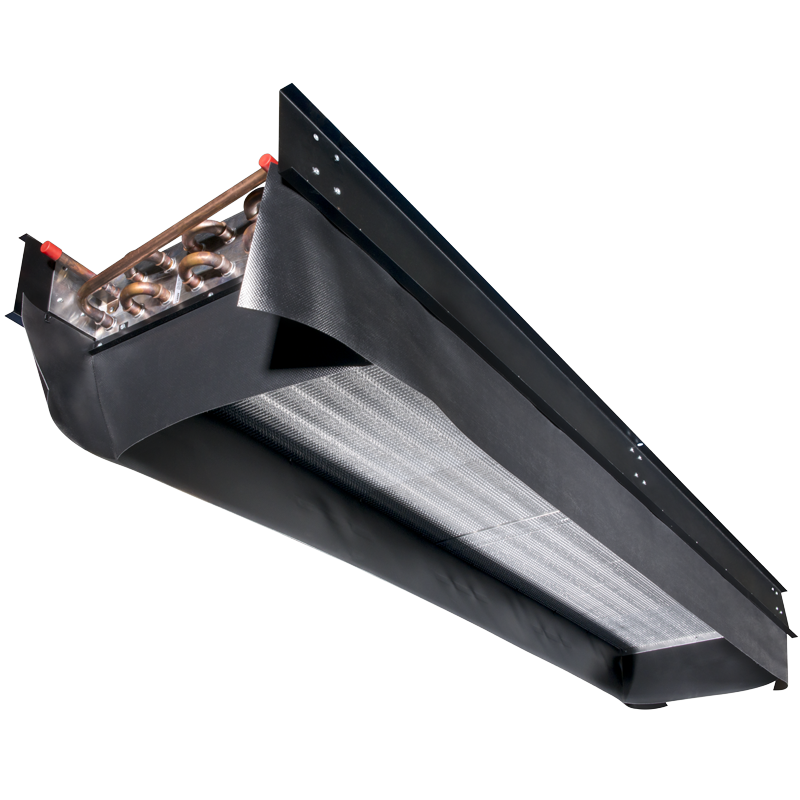

TCB-RB - for ceiling installation either within a ceiling void or can be freely suspended
Nom. L: 1200 to 4500 mm
Nom. W: 250 to 600 mm
H: 200, 250, 300 mm
Cooling capacity up to 1106 W
Available with or without skirt (which provides directional control of discharge air through the ceiling into the occupied zone)


- MSCB (Multi Service Chilled Beam) designs are based around the tried and tested heat exchangers from our existing active/passive product ranges.

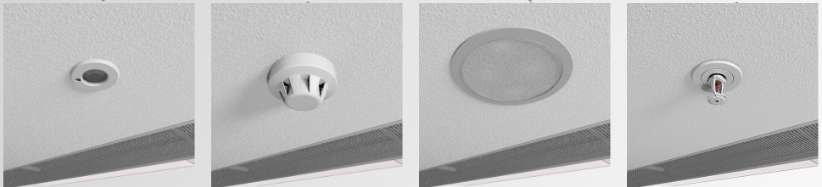

-Architects/consultants are invited to work directly with our design team to select the required services for product inclusion. This includes:

  • Lighting/luminaires
  • Sprinklers
  • Detectors and sensors
  • Speakers
  • WiFi
  • Acoustic panels


We also welcome project teams to visit our Thetford site to view design verification tests at our dedicated laboratories and product manufacture
