DID614/593×593/LE

Tapered hole pattern

Tapered hole pattern

Adjustable twin nozzles

Adjustable twin nozzles

Water connections

Water connections

Fixing brackets

Fixing brackets

Geprüft nach VDI 6022

Geprüft nach VDI 6022


DID614

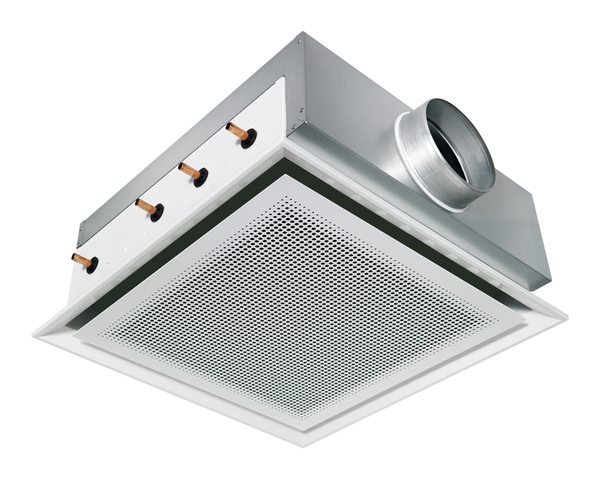

Four-way active chilled beam for ceiling grid, dimensions 600 × 600 mm and 625 × 625 mm, with horizontal heat exchanger




Active chilled beam for heating and cooling, with 2-pipe or 4-pipe heat exchanger, for integration with various ceiling systems.


  • Preferably for room heights up to 4.00 m
  • High heating and cooling capacity with a low conditioned primary air volume flow and low sound power level
  • High comfort levels due to low airflow velocity in the occupied zone
  • 5 nozzle variants for demand-dependent induction: 4 nozzles each with different opening diameters, 1 twin nozzle with adjustable opening diameters
  • Removable induced air grille, no tool required
  • Induced air grille with tapered hole pattern



Optional equipment and accessories


  • Control system
  • Adjustable air control blades for air direction control
  • Different looks due to powder-coated surfaces
  • With an extended border also suitable for freely suspended installation









General information



Application

  • Active chilled beams of Type DID614 for the integration into various ceiling systems, preferably for room heights up to 4.00 m
  • Particularly suitable for grid ceilings with grid size 600 or 625
  • Adjustable air control blades (optional) allow for the manual adjustment of the four-way air discharge
  • Large volume flow rate range due to the adjustable twin nozzles (optional)
  • 2-pipe or 4-pipe heat exchangers enable good comfort levels with a low conditioned primary air volume flow rate
  • Energy-efficient solution since water is used for heating and cooling


Special characteristics

  • Four-way air discharge
  • Horizontal heat exchanger as 2-pipe or 4-pipe system
  • Induced air grille with parallel drilled apertures, decreasing towards the edges
  • Optional twin nozzles, adjustable, for a large volume flow rate range
  • Water connection, Ø12 mm Cu pipe or coupling with G1/2" external thread and flat seal or G1/2" union nut and flat seal
  • Internal nozzle plate with punched nozzles (non-combustible)
  • Adjustable air control blades for air direction control as an option


Nominal sizes

  • 600, 1200 mm


Variants

Heat exchanger

  • 2: 2-pipe systems
  • 4: 4-pipe systems

Nozzle variants

  • HE: Small
  • S1: Medium
  • S2: Large
  • HP: Extra large
  • DA: Adjustable twin nozzles, all nozzles are open (factory setting)
  • DS: Adjustable twin nozzles, smaller nozzles are open
  • DB: Adjustable twin nozzles, large nozzles are open. DS and DB can be set according to local requirements. You should order DA and have DS or DB set by others.


Material and surfaces

  • Casing, spigot, and perforated induced air grille made of galvanised sheet steel
  • Heat exchanger with copper tubes and aluminium fins
  • Exposed surfaces are powder-coated, pure white (RAL 9010), or in any other RAL colour
  • Air control blades made of polypropylene, UL 94, flame retardant (V0)
  • Steel nozzle plate


Attachments

  • Adjustable air control blades
  • Water connection A1: G˝" external thread and flat seal
  • Water connection A2: G˝" union nut and flat seal





Nominal sizes

  • 600, 1200 mm

Technical information

Function, Technical data, Quick sizing, Specification text, Order Code

  • Function
  • QUICK SIZING
  • SPECIFICATION TEXT
  • ORDER CODE

Functional description

Active chilled beams provide centrally conditioned primary air (outdoor air) to the room and use heat exchangers for additional cooling and/or heating. The primary air flows through the nozzles into the mixing chambers. This induces secondary air. The secondary air flows through the induction grille and the horizontal heat exchanger. There it is heated or cooled. Primary and secondary air mix and are then supplied to the room horizontally through the supply air slots.

Die Schnellauslegungstabelle gibt Betriebspunkte für definierte Bezugsgrößen an. Weitere Betriebspunkte können mit unserem Auslegungsprogramm Easy Product Finder berechnet werden.

Schnellauslegung
Nenngröße 600 × 600, 625 × 625

DüseØD

Primärluft qvPr

LWA [dB(A)]KühlenHeizen
2- und 4-Leiter-System4-Leiter-System
[l/s][m³/h]

Δpt [Pa]

Qges [W]

QWK [W]

Δtw [kPa]

Δpw [kPa]

QWH = Qges [W]

Δtw [kPa]

Δpw [kPa]

HE12314501022655238431,73876,70,1
HE1231658136306154213,31,74147,10,1
HE1231968189356864583,61,74427,60,1
S1123186564255933752,91,73816,50,1
S11232486112337354473,51,74327,40,1
S1123311121904188551041,74798,20,1
S2158207234215643232,51,735160,1
S21583412297368794713,71,74517,80,1
S2158431551564310505324,21,74948,50,1
HP1583111237267313562,81,73796,50,1
HP1584516277389984563,61,74447,70,1
HP15850180954110854833,81,74627,90,1
DA158238333185923152,51,735160,1
DA1584014499359464643,61,74537,80,1
DA158562021964612225464,31,75128,80,1
DS158134793275243672,91,73806,50,1
DS1581658141336144203,31,74207,20,1
DS1581968194386874593,61,74507,70,1
DB158165833174943002,31,73335,70,1
DB1582810199347944563,61,74457,70,1
DB158391401914310065384,21,75078,80,1

Schnellauslegung
Nenngröße 1200 × 600, 1250 × 625

DüseØD

Primärluft qvPr

LWA [dB(A)]KühlenHeizen
2- und 4-Leiter-System4-Leiter-System
[l/s][m³/h]

Δpt [Pa]

Qges [W]

QWK [W]

Δtw [kPa]

Δpw [kPa]

QWH = Qges [W]

Δtw [kPa]

Δpw [kPa]

HE1232383112298836054,73,361010,50,1
HE12325901323193763653,363610,90,1
HE123301081893710627015,53,369211,90,1
S11582810166268995614,43,3581100,1
S1158371331153511336885,43,367411,60,1
S1158481731944313747956,23,3756130,1
S21583412241249485404,23,35699,80,1
S21983412235209485404,23,35699,80,1
S2158541941043814057565,93,372712,50,1
S219854194883414057565,93,372712,50,1
S2158742661954817688786,93,382514,20,1
S2198742661664417688786,93,382514,20,1
HP15851184473312065904,63,360310,40,1
HP19851184342512065904,63,360310,40,1
HP15865234754114756915,43,367811,70,1
HP19865234553314756915,43,367811,70,1
HP158752701004516517475,83,372012,40,1
HP19875270733716517475,83,372012,40,1
DA1583914040249374683,73,35359,20,1
DA1983914032< 209374683,73,35359,20,1
DA15860216953713996765,33,367011,50,1
DA19860216763213996765,33,367011,50,1
DA158802881684617567926,23,375212,90,1
DA198802881354217567926,23,375212,90,1
DS158238399298786004,73,361210,50,1
DS198238390268786004,73,361210,50,1
DS1582797135349906655,23,365711,30,1
DS1982797123319906655,23,365711,30,1
DS158321151893911167315,73,370512,10,1
DS198321151733611167315,73,370512,10,1
DB158269434227434283,33,35028,60,1
DB198269430< 207434283,33,35028,60,1
DB158451621013612246825,33,368611,80,1
DB19845162883312246825,33,368611,80,1
DB158632271984515718116,33,378813,60,1
DB198632271734315718116,33,378813,60,1

Bezugsgrößen

ParameterKühlenHeizen

tR

26 °C22 °C

tPr

16 °C22 °C (isotherm)

tWV

16 °C50 °C

qvW

110 l/h50 l/h

Active chilled beams, with four-way air discharge and high thermal output, for air-water systems. For installation flush with the ceiling, preferably in rooms with a height up to 4.00 m. The units consist of a casing with mounting brackets, primary air plenum, non-combustible nozzles, and horizontal heat exchanger. 5 nozzle variants for demand-dependent induction: 4 nozzles each with different opening diameters, 1 twin nozzle with adjustable opening diameters.




Construction

  • Powder-coated RAL 9010, pure white, gloss level 50 %
  • P1: Powder-coated in any other RAL colour, gloss level 70 %
  • P1: Powder-coated RAL 9006, white aluminium, gloss level 30 %



Technical data

  • Nominal length: 600, 1200 mm
  • Length: 593, 598, 618, 623 mm (one tile), or 1193, 1198, 1243, 1248 mm (two tiles)
  • Height: 230/245 mm
  • Width: 593, 598, 618, 623 mm
  • Primary air spigot, diameter: 123/158 mm
  • Primary air volume flow rate: 14 – 87 l/s or 50 – 310 m³ /h
  • Cooling capacity: up to 2170 W
  • Heating capacity: up to 2990 W
  • Max. operating pressure: 6 bar
  • Max. operating temperature: 75 °C


DID614 4S1RA2/593 × 593123/P1 - RAL 9016/LE
|||||| | | | |
123456 7 8 9 10
1 Type
DID614
Active chilled beam

2 Design variant
No entry: perforated front plate, with decreasing apertures towards the edges

3 Heat exchanger
2
2-pipe
4 4-pipe

4 Nozzle variants
HE
small
S1 Standard, small
S2 Standard, large
HP extra large
DA Twin nozzles (factory setting - all nozzles are open)

5 Position of water connection
R
right
L links

6 Water connection (without control package)
No entry: plain copper tube Ø 12 mm
A1 with G½" external thread, flat seal
A2 with G½" union nut, flat seal

7 Overall dimensions [mm]
Length × width
593 × 593 (nominal size 600 × 600)
598 × 598 (nominal size 600 × 600)
618 × 618 (nominal size 625 × 625)
623 × 623 (nominal size 625 × 625)
1193 × 593 (nominal size 1200 × 600)
1198 × 598 (nominal size 1200 × 600)
1243 × 618 (nominal size 1250 × 625)
1248 × 623 (nominal size 1250 × 625)

8 Primary air socket diameter ØD [mm]
123, 158, 198

9 Exposed surface
No entry: powder-coated, RAL 9010 (pure white)
P1 powder-coated, specify RAL CLASSIC colour

Gloss level
RAL 9010 GU 50
RAL 9006 GU 30
All other RAL colours GU 70

10 Adjustable air control blades
No entry: without air control blades
LE with air control blades


Order example: DID614-4-S1-R-A2/593×593-123/P1-RAL9016/LE

TypeDID614 – Active chilled beam
Design variantRound perforated metal plate, encased
Heat exchanger4-pipe
Nozzle variantStandard, small
Position of water connectionright
Water connectionwith G½" union nut, flat seal
Overall dimensions [mm]Length 593, width 593
Primary air spigot diameter [mm]123
Exposed surfacepowder-coated, RAL 9016 (traffic white)
Air control bladeswith air control blades

Variants, Product details

  • VARIANTEN
  • PRODUKTDETAILS



Installation and commissioning


  • Preferably for rooms with a clear height up to 4.0 m
  • Flush ceiling installation
  • Horizontal primary air spigot
  • External dimensions 593 × 593, 598 × 598, 618 × 618, 623 × 623, 1193 × 593, 1198 × 598, 1243 × 618, 1284 × 623 [mm]: suitable for ceiling grid, dimensions 600 × 600 mm and 625 × 625 mm
  • Installation and connections to be performed by others; fixing, connecting and sealing material not included
  • Induction diffuser has 4 mounting brackets for fixing to the ceiling by the customer
  • Heat exchangers are fitted with water flow and water return connections at the narrow side
  • With an extended border also suitable for freely suspended installation




Installation in T-bar profile ceilings or closed ceilings


  • Weight relief of the ceiling construction is to be provided via the existing fixing brackets
