CP-TOUCH

Operating unit for EASYLAB fume cupboard controllers and room controllers with room management function, as well as TROX UNIVERSAL controllers with room management function

Control panels to be used for displaying operating values, activating functions and signalling operating states
■ TFT touch display with a diagonal of 4.3" with 480 × 272 pixels and a colour depth of 65k for display and operation of all functions
■ Touch display with glass front that is easy to clean and disinfect
■ Signalling of the operational reliability of fume cupboards according to EN 14175 or of a room
■ Display of actual values, setpoint values and status messages
■ Operation for operating mode default setting and certain functions
■ Project-specific range of functions with configurable touch interface
■ 2 control panels possible for each fume cupboard or room controller
■ Integral service socket for configuration and diagnosis
■ Casing optimised for wall/junction box installation
■ Display language in German and English

Optional equipment and accessories
■ Indication of power supply failure for fume cupboard controllers with expansion module EM-TRF-USV
■ Wireless communication for configuration with radio-module BlueCON
■ EasyConnect configuration software for setting project-specific display contents and functions

General information

Application

Control panels for displaying and operating the aerodynamic functions of fume cupboards or rooms
Display of actual values, setpoints, operating states and function display on large touch display in colour
Optical and acoustic alarms
Operating mode default setting
Operation of lighting, automatic sash device or blinds without additional installation or wiring

Control panel for fume cupboard control

Status display to EN 14175
Connection to fume cupboard controller EASYLAB TCU3

Room control panel

Status display for the volume flow rate or differential pressure control of a room
Connection to EASYLAB TCU3 or TAM controller with active room management function

Variants

4.3: Touch display with 4.3" diagonal

Special features

Flat glass front with sensitive capacitive touch detection, easy to clean and disinfect
Large 3-colour status display
The push buttons and range of functions can be configured individually
Easy operation
Released functional areas visible, blocked functional areas non-visible
Excellent operating reliability as a result of continuous self monitoring of the communication between controller and control panel
Mounting on side frame or wall, optimised for wall mounting

Parts and characteristics

Touch display in colour, screen diagonal depending on variant
For display and operation of all functions
3-colour safety display (green, yellow, red)
Sash monitoring warning display
5 function groups with configurable functions contained therein, such as actual and setpoint value display, operating modes, additional functions, settings and timer
Alarm sounder
Integrated real-time clock includes simple timer for operating mode switching
Connection socket for EASYLAB controller
Integral service socket for configuration and diagnosis of the EASYLAB controller
Wireless communication for configuration possible with radio-module BlueCON
5 m connecting cable included in the supply package
Rectangular casing suitable for flush mounting or surface mounting

Construction features

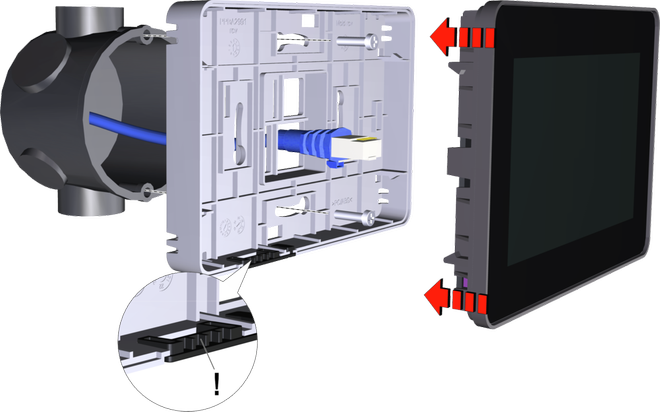

Two-part casing with base plate and pluggable adapter to facilitate installation
Pluggable connections
Easy access to the configuration socket from outside of the control unit

Materials and surfaces

Casing in ABS plastic, UL-V0
Casing: pearl light grey/black (RAL 7035/RAL 9005)
Glass front panel with touch display in colour

Useful additions

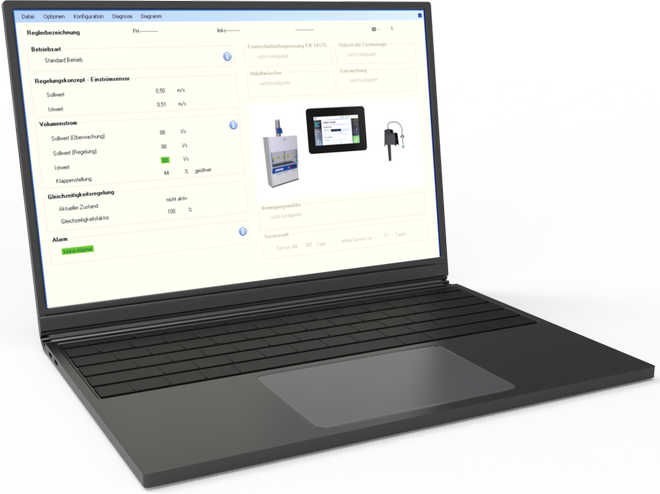

EasyConnect: Configuration software for the commissioning and diagnosis of the EASYLAB type

Technical information

CP-Touch, view and operation

1 Status area
2 Main menu
3 Submenu
4 Alarm area

CP-TOUCH-4.3-control-panel--front-and-rear-view

EASYLAB control panel type CP-TOUCH

The CP-TOUCH control panel is used to display and operate the ventilation and safety functions of a fume cupboard or an entire room control system. The user receives information about the status of the fume cupboard or room and can switch between various operating modes and functions. The display and operating elements in detail:

Variant CP-TOUCH 4.3
Touch display with a diagonal of 4.3", a resolution of 480 × 272 pixels and a colour depth of 65k
Alarm sounder
3-colour function display shows the safe operation of the fume cupboard or a room
Warning display and area for messages
Status area for displaying active functions
5 function groups with configurable functions contained therein

Actual and setpoint displays for current values
Operating modes
Additional functions
Settings such as time, date, display settings, language
Timer

With service socket

The range of functions of the control panel can be adapted to the project-specific requirements with the EasyConnect configuration software and in part directly on the CP-TOUCH. The range of functions may vary for different fume cupboards or rooms. The touch display is used for display and operation. The available functions are shown on the display surface by corresponding symbols. The user selects the desired function on the touch display, e.g.

Selection of the operating mode
Activation of automatic sash device
Switching the fume cupboard lighting on or off

In the current values area, the user can see actual and setpoint values for volume flow rate, face velocity, or, on the room controller, the room pressure or the total volume flow rate for extract/supply air (only if the necessary sensors are available). In addition, the display also shows system messages and pending alarms and messages. CP-TOUCH also has a real-time clock for showing the current time on the display. This function also enables the parameterisation of a time programme with an interval of 7 days. This allows 5 switching points per day with the available operating modes to be set directly on the control unit.

CP-TOUCH-4.3 control panel

Screen diagonal	4.3"
Display resolution	480 × 272 pixels
Display colour depth	65k
Power supply	24 V DC from the controller TCU3 or adapter module TAM
Connecting cable	Patch cord type SF-UTP; 5m enclosed; extendable up to 40 m
IEC protection class	III (Protective extra-low voltage)
Operating temperature	10 to 50 °C
Protection level	IP 20
Dimensions	12.5 × 8.5 × 2 cm
Alarm sounder	Beeper
Casing material	ABS UL-V0
Colour	RAL 9005/RAL 7035
CE conformity	EMC Directive 2014/30/EU RoHS Directive
Weight	300 g

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design programme.

Special features

As room control panel:

Configurable, optical and acoustic signalling of the operational reliability of a room with up to 24 EASYLAB controllers

Large 3-colour display area in green, yellow, red
Optical and acoustic signalling of the operational reliability of the room while room pressure and volume flow control can be configured individually:

Room pressure monitoring
Monitoring of the exceeding of the total room extract air in an extract air led system
Monitoring of the undershooting of the minimum room extract air according to DIN 1946, Part 7, in an extract air led system
Consolidated alarm of room, individually configurable on controller EASYLAB

Activatable function buttons for the following room control functions:

Operating mode default setting for up to 24 EASYLAB controllers in the room without additional wiring effort
Activation of standard volume flow rate
Activation of increased volume flow rate
Activation of reduced volume flow rate
Full closure
Manual control mode (prioritisation of operating mode default setting)
Switching the lighting on/off
UP/DOWN control input signal for a blind (provided by others) via switch contacts
Acoustic alarm acknowledgement

Status displayed as text in various languages or as a symbol:

Room operating mode
Total extract air with setpoint and actual values (optional)
Room pressure with setpoint and actual values (optional)
System and device faults are displayed in alarm list (unique code with plain text)
Voltage failure display (only with expansion module EMTRF- USV on the EASYLAB controller)

As fume cupboard control panel:

Optical and acoustic signalling of the operational reliability of fume cupboards according to EN 14175

Large 3-colour display area in green, yellow, red
With additional warning display that the maximum operational sash opening has been exceeded according to EN 14175

Activatable functions of fume cupboards:

Activation of standard volume flow rate
Activation of increased volume flow rate
Activation of reduced volume flow rate
Full closure
OPEN/CLOSED control of the automatic sash device
Switch the fume cupboard lighting on/off
Manual control mode (prioritisation of operating mode default setting)
Acoustic alarm acknowledgement

Status displayed as text in various languages or as a symbol:

Service is due (option)
System and device faults are displayed in alarm list (unique code with plain text)
Power failure (only with the expansion module EM-TRFUSV on the EASYLAB controller)
Smoke extract is active
Scrubber release and scrubber in function
Device faults (unique code with plain text)
Display of face velocity actual value at fume cupboards (option for fume cupboards with face velocity transducer)
Display of the current volume flow of the fume cupboard
Indication of exceeding the simultaneity limit if the fume cupboard is affected by it
Fume cupboard overtemperature for high temperature fume cupboards according to EN14175, measured with optional temperature sensor as accessory

General features

4.3" touch display (LCD) in colour, with 480 × 272 pixels and a colour depth of at least 65k
Glass front panel
Casing in ABS plastic UL 94-V0
Adjustable display brightness
Automatic dimming adjustable in time
Range of functions can be individually adjusted:

Configured control elements become visible
Locked control elements are hidden
Actual and setpoint value displays can be shown and hidden on the display

Continuous self monitoring of the communication between controller and control panel
Integrated timer for automated switching of the operating modes in the room or on the fume cupboard with 7 days and 5 switching points per day
Integral service socket for configuration and diagnosis of the EASYLAB base component
Prepared for connection of the radio-module BlueCON for wireless configuration
2 CP-TOUCH control panels can be connected simultaneously to an EASYLAB fume cupboard controller or controller with activated room management function (RMF)
Prepared for easy installation into/onto a wall
Plug-in connection cable, 5 m long, extendable to 40 m
Power supply 24 V DC through the connection cable from the TCU3 controller
IP 20 protection

Manufacturer: TROX GmbH

Type: CP-TOUCH

Variant 4.3

CP	–	TOUCH	–		–		/	BL	/
\|		\|		\|		\|		\|		\|
1		2		3		4		5		6

1 Type
CP Control panel

2 Variant
TOUCH SCREEN 4.3" touch display

3 Characteristics
No entry: without further properties

4 Connection
No entry: wired

5 Exposed surface
BL Black

6 Application
No entry: automatic assignment to the application

Order example: CP-TOUCH/BL

Type	CP – Control Panel
Variant	4.3" touch display for LABCONTROL
Characteristics	No further characteristics
Connection	Wired
Exposed surface	Black
Application	Automatic assignment to the application
