Grilles and Diffusers

AIR DIFFUSION

Circular disc valves with manually adjustable annular gap. Supply air valves direct the air from air conditioning systems into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

Z-LVS

Circular disc valves with manually adjustable annular gap

Nominal sizes 100, 125, 160, 200 mm
Volume flow rate range 10 – 90 l/s or 36 – 324 m³/h
Diffuser face made of formed sheet steel, powder-coated
For variable and constant volume flows
For ceiling and wall installation
Easy to install
Volume flow rate balancing by simply turning the valve disc
Inexpensive solution for small rooms

SDW

Square ceiling swirl diffusers for high room air change rates

Nominal sizes 300, 400, 500, 600, 625
Volume flow rate range 7 – 310 l/s or 26 – 1116 m³/h
Diffuser face made of galvanised sheet steel, powder-coated
For supply and extract air
For variable and constant volume flows
For all types of ceiling systems
High induction results in a rapid reduction of the temperature difference and airflow velocity
Air change rates of up to 35 per hour can be achieved by arranging several diffusers in a row with a minimum pitch of 0.9m (center line to center line)
Ideal for comfort zones

Optional equipment and accessories

Exposed diffuser face available in RAL CLASSIC colors, air control blades in black or white
Horizontal or vertical duct connection
Plenum box with cord-operated damper blade and pressure tap

FBA

The different attachments allow a wide range of applications with different air flows, installation conditions and several options for volume flow balancing.

Nominal sizes: 150, 200 mm
Volume flow range 1 - 59 l/s or 4 - 213 m³/h
Annular diffuser contour with different surface structures
For constant and variable volume flows
For all types of raised floors
Horizontal or vertical air flow
Reduction element adjustable on the front or rear side
Can be installed with and without trim ring
The trim ring allows quick and easy installation and removal of the grille inserts for cleaning purposes
High mechanical strength/breaking resistance > 17 kN
Ideal for comfort zones

Optional equipment and accessories

Swirl unit adjustable at the back for manual adjustment between vertical and horizontal air routing
Trim ring with spring clip fixing to cover the installation opening
Dirt trap can also be used as a reduction element
Plenum box

ADT

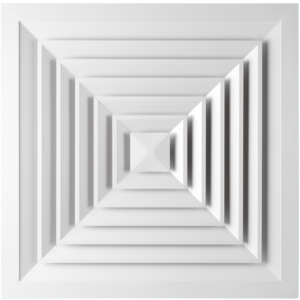

Square ceiling diffusers

Nominal sizes 150, 225, 300, 375, 450, 525, 600 mm
Volume flow rate range 25 - 681 l/s or 90 - 2450 m³/h
Square diffuser face
Diffuser face made of aluminium with powder-coat finish
For supply and extract air
For variable and constant volume flows
For all types of ceiling systems
High induction results in a rapid reduction of temperature differences and airflow velocities

Optional equipment and accessories

Exposed diffuser face available in RAL CLASSIC colours
Horizontal or vertical duct connection
Blanking plates for adjusting the discharge direction
Plenum box with cord-operated damper blade and pressure tap

LVS

Circular disc valves with manually adjustable annular gap

Nominal sizes 100, 125, 160, 200 mm
Volume flow rate range 10 – 50 l/s or 36 – 180 m³/h
Diffuser face made of formed sheet steel, powder-coated
For variable and constant volume flows
For ceiling and wall installation
Easy to install
Volume flow rate balancing by simply turning the valve disc
Inexpensive solution for small rooms
