COMPACT. FLEXIBLE. EFFICIENT.

The ready-to-use ventilation unit delivers up to 15,000 m³/h. It combines the advantages of a standardised product range with high flexibility thanks to additional modules and accessories. The X-CUBE X2 compact saves energy at the highest level - ErP-compliant, of course. Thanks to the highly efficient heat recovery system, the energy from the extract air is optimally used, while the modern EC fans ensure particularly energy-efficient air transport. This is how the X-CUBE X2 compact achieves sustainable, economical performance - in a compact, reliable design.

AIR FLOW RATE:
UP TO 15,000 M³/H


PRE-CONFIGURED
& READY FOR OPERATION

FLEXIBLE MODULES

ENERGY-EFFICIENT
(ERP-COMPLIANT)

IDEAL FOR SMALL TO MEDIUM SIZED COMMERCIAL BUILDINGS

  • Medical practices, hospitals & rehabilitation centres
  • Schools, offices & training centres
  • Restaurants, cafés & event locations
  • Shops & retail businesses
  • Fitness and sports studios


WE SOLVE YOUR CHALLENGES.

  • For the installer, X-CUBE X2 Compact AHU's are easy to buy and transport, with short lead times and plug-and-play installation. X-CUBE Control ensures easy start-up and communication with BMS via BACNet or Modbus.
  • For the building owner or facilities manager, low overall operating costs, reliable operation and minimum maintenance ensure peace-of-mind.


Conveniently COMPACT size. Immediately ready to use.

Due to the small size and the variable versions with vertical or horizontal duct connection, installation is possible in the smallest of spaces. The slim units fit largely through standard doors and are easy to transport. The units are supplied ready for connection and can be configured and commissioned via X-CUBE control in a very short time.

The casing with smooth surfaces and hygienic installation, and component configuration, fulfils the strict requirements of VDI 6022. The design principle, insulation, tightness and intelligent control also ensure particularly high savings potential. The X-CUBE X2 Compact has been designed to be consistently energy-efficient.

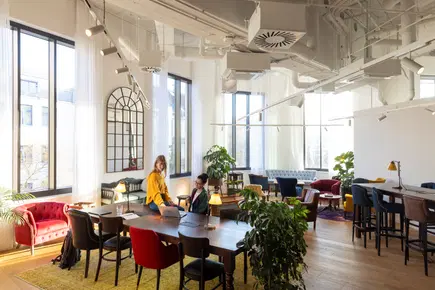

X2C2 Office



REASONS TO CHOOSE X-CUBE X2 COMPACT


Smart control

Easy to use control system with status display of all functions and integrated alarm messages such as for filter replacement.

hygienic design

Hygienically designed Air Handling Unit casing, with smooth surfaces, no protruding casing parts and world-class filtration.

ENERGY EFFICIENT

Run around coil technology, high efficiency EC Fans and heat recovery efficiency up to 82%, achieves leakage class L1.

EASy to use

A "plug & play" Compact AHU with factory pre-configured smart integrated controls for easy installation and operation.

COMPACT SIZE

Fits through standard doorways for easier access and flexibility in installation and maintenance, and a lower life cycle cost.

FAST DELIVERY

Selected variants are available from stock, with units ready to be dispatched typically within 14 days from confirmed order.

THREE DESIGNS - OPTIMISED FOR YOUR INDUSTRY APPLICATION

HORIZONTAL CONNECTION

with rotary heat exchanger

  • Indoor or outdoor installation (side connections)
  • Very high recovery efficiency
  • Air volume: 600–15,200 m³/h

VERTICAL CONNECTION

with rotary heat exchanger

  • Indoor installation (ducts on top)
  • High efficiency with low space requirements
  • Air volume: 600–5,200 m³/h

HORIZONTAL CONNECTION

with counterflow plate heat exchanger

  • Indoor or outdoor installation (side connections)
  • No transfer of moisture or odour
  • Air volume: 600–10,200 m³/h

ROTARY OR PLATE HEAT EXCHANGER?

Rotary Heat Exchanger

Rotary heat exchangers achieve very high recovery rates and can transfer moisture as well as heat.


Counterflow Plate Heat Exchanger

Counterflow plate heat exchangers maintain complete air-side separation, transferring heat only, while effectively preventing any mixing of the air flows.

VOLUMES AND SIZES

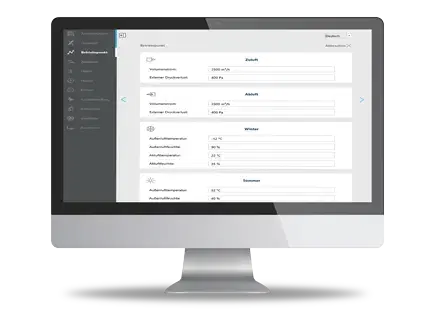

X-CUBE CONFIGURATOR

FIND THE RIGHT UNIT QUICKLY

High energy efficiency, space-saving designs, and a wide standard range ensure the consultant can meet the project specifications. A powerful X-CUBE Configurator selection tool and comprehensive technical documentation make the project even easier.

  • Simple online design and dimensioning of X-CUBE air handling units.
  • Configuration possible without special training
  • Secure access around the clock via the myTROX portal.
  • LCC tool to determine the expected operating costs.


► Configure your compact X-CUBE X2 compact here! ►►

X-CUBE X2 COMPACT

TECHNICAL ADVANTAGES AT A GLANCE

  • Air volume flow: 600 to 15,000 m³/h
  • Efficient heat recovery with plate or rotary heat exchanger
  • Efficiency up to 82 % dry (EN 308)
  • Powerful and quiet EC fans
  • High hygiene standard (conforms to VDI 6022)
  • Integrated, bus-compatible measurement and control technology
  • BACnet IP or Modbus TCP/IP
  • Intuitive operation via integrated or external touch panel
  • Direct integration into the BMS
  • Optional weather-protected version for outdoor installation



X-CUBE X2 COMPACT FEATURES

PANEL CONSTRUCTION

    • Seamless foam seal, maintenance free
    • Low leakage
    • Minimal heat loss
    • Thermal transmittance class T2

    Surfaces

    • Corrosion-resistant powder coating, meets C4 corrosion class
    • No protruding frame parts, and smooth surfaces for easy cleaning

    Control Panel

    • Intuitive operation with 3.5‘‘ touch display
    • Status display of all functions
    • Integrated alarm messages, e.g. for filter changes

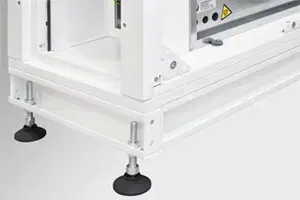

    Base Frame

    • Separate base frame, powder coated
    • Adjustable feet for optimum levelling (supplied separately)

    CASING CONSTRUCTION

    • Particularly light and stable sandwich construction
    • Optionally with vibration-damped base frame

    INDEPENDENTLY CERTIFIED

    • Leakage class L1 (M)
    • Mechanical strength class D1 (M)
    • Filter classes up to ePM1-90%
    • Thermal transmittance class T2
    • Thermal bridging class TB2

    CENTRIFUGAL FAN

    • Free-running fan with EC Motor
    • High efficiency
    • Low sound pressure level
    • Compliant variants up to efficiency class IE 5 according to IEC 60034-30

    FILTERS

    • Eurovent-certified
    • Low installation depth
    • Low initial differential pressure
    • High dust holding capacity
    • Quick-release clamping mechanism

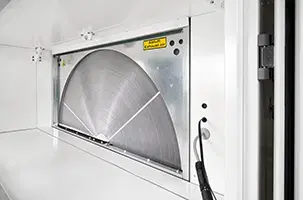

    HEAT RECOVERY

    • Rotary or counterflow plate heat exchanger
    • Heat recovery efficiency (dry) up to 82 %
    • Condensation rotor
    • Optional sorption rotor for moisture transfer

    PURGE SECTOR

    • Prevents exhaust air from entering the supply air duct in rotary heat exchangers

    MULTILEAF DAMPERS

    • Aerodynamically profiled hollow blades
    • Leakage class 4 according to EN 1751

    CONTROL TECHNOLOGY

    • Prepared for Modbus or BACnet communication with BMS
    • Control input signal for peripheral accessories possible



    THE ADVANTAGES OF X-CUBE X2 COMPACT

    INTEGRATED BUS-BASED CONTROL

    • The X-CUBE X2 compact is equipped with a bus-compatible control system as standard, which ensures maximum efficiency and easy handling.


    INTUITIVE USER INTERFACE, FAST COMMISSIONING

    • The user-friendly interface enables particularly fast commissioning and provides easy access to all functions.

    ACCESS TO ALL RELEVANT FUNCTIONS

    • All important air handling parameters can be monitored and controlled directly via the control system.

    CAN BE USED STAND-ALONE OR VIA CENTRAL BMS

    • The system can be flexibly integrated as a stand-alone solution or seamlessly into a central Building Management System (BMS).

    SMART AND INTELLIGENT DESIGN

    • Selection, installation and intuitive control system with wireless communication
    • Hygienic casing design, Eurovent certified with filter class up to ePM1-90%
    • Fully prewired controls and prepared for BMS integration with BACNet or Modbus


    Platzhalter Performance

    ENERGY EFFICIENT PERFORMANCE

    • High efficiency free-running EC Fans
    • Ultra Efficient Run Around Coil Technology
    • Heat Recovery - efficiency up to 82%

    Platzhalter Flexibel

    COMPACT SIZE AND LOWER LIFE CYCLE COST

    • Robust and durable for longer life, with class C4 corrosion resistance
    • Minimum space required with efficient performance
    • Integrated systems technology for efficient operation

    Independently Certified Quality

    • Casing Leakage class L1 (M)
    • Thermal transmittance class T2
    • Thermal bridging class TB2
    • Structural stability D1 (M)



    X-CUBE X2 COMPACT CERTIFICATIONS



    PERSONALISED CONSULTATION FOR X-CUBE X2 COMPACT

    WE WILL GLADLY ADVISE YOU.

    Our experts support you with planning, design and any questions about the X-CUBE X2 compact. Get in touch with us now - online, by phone or in person.

    E-Mail: CompactAHU@troxuk.co.uk

    Phone: +44 (0)1842 754545

    X2C2 AHU Customer Excellence



    DOWNLOADS

    product information

    • X-CUBE X2 Compact

      SF_2025_04_XCUBE_compact_2pp_EN-UK | X-CUBE X2 Compact 1.3 MB pdf

    brochures

    • X-CUBE X2 Compact  |  Air Handling in a Snap!

      SB_XCUBE_compact_EN-UK_2026_01 | X2 Compact Brochure 4.5 MB pdf

    • X-CUBE X2 Compact  |  Configuration Order Code Format

      OC_XCUBE_compact_EN-UK_2026_01 | Order Code 1.6 MB pdf

    certificates

    • Environmental Product Declaration X-CUBE X2 Nordic

      Environmental Product Declarations 450 KB pdf

    • Eurovent Certification - X-CUBE Series

      Certification 200 KB pdf

    operation manuals

    • Operating Manual-X-CUBE X2 compact 2

      Operating Manual 4.7 MB pdf

    • X-CUBE X2 Compact Air Handling Unit - Transportation and Installation Manual

      7.3 MB pdf
