Tailored components for air discharge

TROX has developed bespoke solutions for the special requirements of laboratories.
  • Air terminal devices which ensure a rapid change of large air volumes in the lab

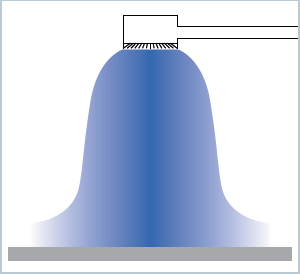

  • PROCONDIF: Air discharge with the PROCONDIF is ideal for labs as large volume flows can be supplied with only medium supply air to room air temperature differences to selected spots in a room. This results in a homogeneous, lowturbulence air movement in the occupied zone. The diffuser is ideal for supplying air while causing only low induction levels. The velocity profile is achieved by a honeycomb structure with very fine channels of different widths. The 30° discharge angle creates a bell-shaped air pattern, i.e. the supply air does not adhere to the ceiling (Coanda effect).
  • Air-water systems and air terminal devices which are easy to clean and meet the hygiene requirements in offices, corridors, toilets and specific lab areas
  • Decentralised ventilation systems for offices with an external wall
The PROCONDIF diffuser is also suitable for freely suspended installation. The bell-shaped air pattern supplies fresh air to rooms without causing eddies near fixtures or furniture
maßgeschneiderte_luftfuerung

duesenrohr

TROX HESCO duct nozzle diffuser An ideal air terminal device for rooms with high air change rates.
72– 2824 m³/h
20 – 785 l/s
500 – 2000 mm

procdif

PROCONDIF Profile Controlled Diffusion These diffusers are also an excellent solution for providing supply air from above to sensitive areas in labs, creating a displacement flow in the occupied zone.
280– 600 m³/h
78 – 167 l/s
600 x 600, 625 x 625 mm
