DID-F

Adjustable air control blades

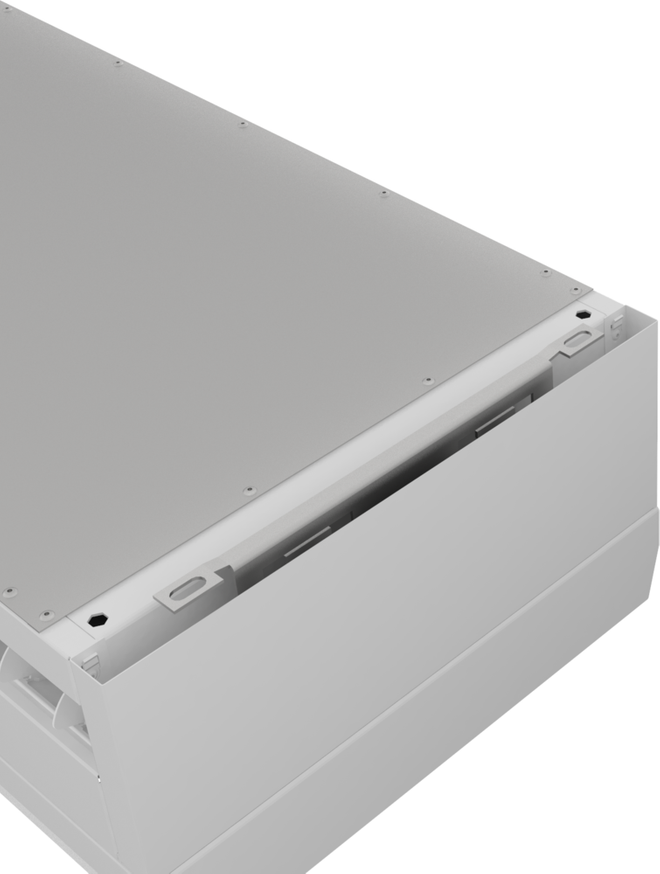

4 fixing options


3 connection variants for water


DID-F

Compact active chilled beam with two-way air discharge, can be easily combined with other systems for room temperature control, such as concrete core activation




Active chilled beam for freely suspended installation, no suspended ceiling required


  • Inexpensive solution for refurbishments and spaces of low floor-to-ceiling height
  • Compact ventilation system for room temperature control with open ceiling design
  • Flexible application – installation directly below the ceiling slab or freely suspended in the room
  • Ducts and water pipes in the room can be short since connections on the narrow side of the beam allow for air and water being provided from the corridor side
  • Manually adjustable air pattern with optionally available air control blades
  • Reduced height thanks to horizontal heat exchanger and high thermal load dissipation with water






General information

Application

  • Active chilled beams for direct installation below the ceiling slab or freely suspended in the room
  • A suspended ceiling is not required, which means that these devices can ideally be combined with concrete core activation
  • Preferably for installation up to 4 m high, even if the room is higher
  • Heating with the DID-F is only possible if the device is installed directly below the ceiling slab and the installation height is ≤ 4 m

  • Adjustable air control blades allow for later manual adjustment of the air discharge direction
  • Preferably with a 2-pipe heat exchanger for cooling; with direct installation below the ceiling slab, a 4-pipe heat exchanger for cooling and heating is an option
  • Good comfort levels with a low conditioned primary air volume flow rate
  • Energy-efficient solution as water is used for heating and cooling


Special features

  • The optional duct covering allows for installation of the active chilled beam in the middle of the ceiling even if a room is large, as the same covering is used for ducts and water pipes to create a uniform look
  • Manually adjustable air control blades for air direction control enable reduction of vh1 and vl velocities in the occupied zone
  • Horizontal heat exchanger as a 2-pipe system and, for direct installation below the ceiling and a maximum installation height of 4 m, also as a 4-pipe system for heating and cooling
  • Internal nozzle plate with non-combustible punched nozzles
  • Water connections at the narrow side, Ø12 mm Cu pipe with plain tails, with G½" external thread and flat seal, or with G½" union nut and flat seal


Nominal sizes

  • 1200, 1500, 1800, 2100, 2400, 2700, 3000 mm



Variants

Heat exchanger

  • 2: For 2-pipe systems
  • 4: For 4-pipe systems

Nozzle variants

  • HE: Small
  • S1: Medium
  • S2: Large
  • HP: Extra large



Attachments

Water connections



  • No entry required: Ø12 mm pipe with plain tails
  • A1: with G½" external thread and flat seal
  • A2: with G½" union nut and flat seal


Air control blades for subsequent manual adjustment of the supply air flow.


Accessories

  • Covering for ducts and water pipes, if the active chilled beam is installed in the centre of the room (duct covering has the same shape as the DID-F)
  • Heating and cooling valves for controlling the cooling and heating capacity


Useful additions

  • Connecting hoses
  • Control equipment consisting of a control panel including a controller with integral room temperature sensor; valves and valve actuators; and lockshields
  • X-AIRCONTROL control system with the option of integration with the central BMS


Construction features

  • Duct connection suitable for circular ducts in accordance with EN1506 or EN13180
  • Various fixing systems for suspension with hooks, ropes, threaded rods or installation directly below the ceiling slab
  • 4 nozzle variants for demand-based induction
  • Induced air grille with circular holes, staggered pitch
  • Air and water connections at the narrow side



Materials and surfaces

  • Casing, induced air grille, spigot, brackets and duct covering made of galvanised sheet steel
  • Nozzle plate made of sheet steel

  • Heat exchanger with copper tubes and aluminium fins
  • Exposed surfaces are powder-coated pure white (RAL 9010) or in any other RAL CLASSIC colour
  • Air control blades made of polypropylene, UL 94, flame retardant (V0)




Standards and guidelines

  • Products are certified by Eurovent (no. 09.12.432) and listed on the Eurovent website
  • Declaration of hygiene conformity to VDI 6022



Maintenance

  • No moving parts, hence low maintenance
  • The heat exchanger can be vacuumed with an industrial vacuum cleaner if necessary
  • VDI 6022, Part 1, applies (hygiene requirements for ventilation and air-conditioning systems and units)

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

  • Function
  • TECHNICAL DATA
  • QUICK SIZING
  • SPECIFICATION TEXT
  • ORDER CODE

Active chilled beams provide centrally conditioned primary air (fresh air) to the room and use heat exchangers for additional cooling and/or heating. The primary air is discharged through nozzles (4 variants) into the mixing chamber; as a result of this, secondary air is induced. Secondary air (room air) is induced via the induced air grille and passes through the horizontal heat exchanger, where it is heated or cooled. Primary and secondary air mix and are then supplied to the room through the supply air slots at the side. The DID-F fulfils this function without a suspended ceiling and can either be installed directly under the ceiling slab or suspended in the room.

Length = nominal length

1200, 1500, 1800, 2100, 2400, 2700 and 3000 mm


Height

221, 256, 296 mm


Width

400 mm


Diameter of entry spigot

123, 158 and 198 mm


Cooling capacity

Up to 4290 W


Heating capacity

Up to 2920 W


Max. operating pressure, water side

6 bar


Max. operating temperature

75 °C


LNPrimary airCooling / 4-pipe systemHeating / 4-pipe system
qvPr [l/s]qvPr [m³/h]Δpt [Pa]LWA [dB(A)]Φtot [W]ΦWK [W]tw,r[°C]ΔpW [kPa]Φtot = ΦWH [W]tw,r[°C]ΔpW [kPa]
HE120013.334863< 1579563417.812.699244.31.1
HE120026.399524833128196318.812.6130542.51.1
HE150016.676064< 1597677518.215.4121043.11.3
HE150032.78118247341555116019.315.41575411.3
HE180020.287367< 15116391918.618.2142541.81.6
HE180039.17141249341817134519.918.2182839.51.6
HE210023.618567< 151290100519.515.2162240.71.8
HE210045.5616424835198814392115.2206638.21.8
HE240027.229869< 151456112819.917.2181839.62.1
HE240051.94187250352213158721.517.2229136.92.1
HE270030.5611069< 151605123720.319.2199738.62.3
HE270058.06209249352422172221.919.2249935.72.3
HE300033.8912269151749134120.621.2216837.62.6
HE300064.44232249352628185222.421.2269934.52.6
HE120021.677866< 1598272118.112.6108743.81.1
HE120041.9415124936153610301912.6138542.11.1
HE150027.781007016122889318.615.4133642.31.3
HE150052.5189250371875124319.615.4167340.41.3
HE180033.331207016144610451918.2156041.11.6
HE180062.78226249372194143820.118.2193938.91.6
HE210038.8914071171605113719.915.2177339.81.8
HE210073.06263250382412153221.315.2218837.51.8
HE240044.7216172191807126820.417.2198038.42.1
HE240083.06299250392685168421.817.2241936.12.1
HE270050.2818173211994138920.819.2217237.52.3
HE270092.78334249402942182422.319.2263534.92.3
HE300055.8320174232175150221.221.2235436.52.6
HE3000102.5369249413190195522.721.2283833.72.6
HE120022.788232< 1588761217.812.792944.71.1
HE120063.33228249371865110219.212.71398421.1
HE150028.8910433< 15110675818.215.4114343.41.3
HE150079.17285247< 382279132519.815.4168740.31.3
HE18003512633< 15131989718.618.2134642.31.6
HE180095.56344249402686153520.418.2196038.81.6
HE210040.8314734< 15147698419.415.2153541.21.8
HE2100111.39401250412971162921.615.2221237.31.8
HE240046.6716834< 151660109819.817.2171640.22.1
HE2400127.22458250423322178922.217.22448362.1
HE270052.7819034< 151847121120.219.2189439.12.3
HE2700142.5513250433653193622.719.2266734.72.3
HE300058.6121135162021131520.521.2205938.22.6
HE3000157.5567250453968207123.121.2287333.52.6
HE120034.7212534< 1511197001812.6107243.91.1
HE120093.61337250442278115019.312.6152041.31.1
HE150043.891583517138986118.515.4131142.51.3
HE1500117.542325045279813822015.4183139.51.3
HE180053.0619135191652101318.918.2153741.21.6
HE1800141.11508250473296159620.618.2211937.91.6
HE210061.9422336211850110419.815.21747401.8
HE2100163.61589250483656168521.815.2238236.31.8
HE240071.1125637232089123220.217.2195138.82.1
HE2400183.06659243504043183822.317.22617352.1
HE27008028838262314135020.619.2214137.72.3
HE2700188.61679209504210193722.719.22788342.3
HE300089.173213928253914652121.2232536.72.6
HE3000189.17681174504291201222.921.2292833.22.6

① Nozzle variant

Sound power level



Reference values

ParameterCoolingHeating
tR26 °C22 °C
tPr16 °C22 °C
tWV16 °C50 °C
qv,W (LN 900 – 1800 mm)300 l/h150 l/h
qv,W (LN 2100 – 3000 mm)250 l/h150 l/h

Active chilled beams of type DID-F with two-way air discharge are suitable for freely suspended or direct installation below the ceiling slab and offer optimum comfort thanks to the ideal discharge angle and maximum induction. The active chilled beam can be used on its own or as the perfect extension to concrete core activation since it has a positive impact on the thermal energy supplied to the room. This air-water system does not require a false ceiling, and the installation height should preferably not exceed 4 m. 3 different installation kits are optionally available for fixing, but the chilled beam can also be fixed without an installation kit, using standard fixing materials. This enables fast, straightforward installation, depending on the structural conditions. Sizing can be varied by choosing one of four possible nozzle sizes. The nozzles are punched into the nozzle plate and are non-combustible. The primary air flow rate can be low for hygiene and energy reasons. Together with the horizontal heat exchanger, this enables the dissipation of large heating and cooling loads. The water connections positioned on the narrow side are optionally available as plain tails, G½" external thread with flat seal or G½" union nut. The primary air connection is on the same connection side as the water connections and is available with a nominal diameter of 125 mm, 160 mm or 200 mm. This allows for direct connection of beam, e.g. from the corridor, avoiding complex duct and pipe layouts in the room. Circular ducts in accordance with EN 1506 or EN 13180 can be installed directly. Owing to the decreasing apertures of the induced air grille, the DID-F fits perfectly into its surroundings. The optional air control blades allow for air distribution to be adjusted manually at any time.


Special features

  • The optional duct covering allows for installation of the active chilled beam in the middle of the ceiling even if a room is large, as the same covering is used for ducts and water pipes to create a uniform look
  • Manually adjustable air control blades for air direction control enable reduction of vh1 and vl velocities in the occupied zone
  • Horizontal heat exchanger as a 2-pipe system and, for direct installation below the ceiling and a maximum installation height of 4 m, also as a 4-pipe system for heating and cooling
  • Internal nozzle plate with non-combustible punched nozzles
  • Water connections at the narrow side, Ø12 mm Cu pipe with plain tails, with G½" external thread and flat seal, or with G½" union nut and flat seal


Materials and surfaces

  • Casing, induced air grille, spigot, brackets and duct covering made of galvanised sheet steel
  • Nozzle plate made of sheet steel

  • Heat exchanger with copper tubes and aluminium fins
  • Exposed surfaces are powder-coated pure white (RAL 9010) or in any other RAL CLASSIC colour
  • Air control blades made of polypropylene, UL 94, flame retardant (V0)


Technical data

  • Length = nominal length: 1200, 1500, 1800, 2100, 2400, 2700 and 3000 mm
  • Height: 221, 256, 296 mm
  • Width: 400 mm
  • Diameter of spigot: 123, 158 and 198 mm
  • Cooling capacity up to 4290 W
  • Heating capacity up to 2920 W
  • Max. operating pressure, water side: 6 bar
  • Max. operating temperature: 75 °C


DID-F4S2A2 / 1200 x 123 x 1000 / A / LE / P1 – RAL …
||||||||||
12345678910
1 Type
DID-F Active chilled beam

2 Heat exchanger
2 2-pipe
4 4-pipe

3 Nozzle variant
HE small
S1 medium
S2 large
HP extra large

4 Water connections
No entry: Ø12 mm pipe with plain tails
A1 with G½" external thread and flat seal
A2 with G½" union nut and flat seal

5 Nominal lengths [mm]
1200, 1500, 1800, 2100, 2400, 2700, 3000

6 Primary air spigot
123, 158, 198

7 Duct covering
No entry required: None
1000  Length 200 – 2900 mm

8 Fixing variant
No entry required: installation using the threaded blind holes M6
A Installation kit for installation directly under the ceiling slab
B Installation kit for freely suspended installation with brackets
C Installation kit for freely suspended installatin with suspension brackets

9 Air control elements
No entry required: None
LE With air control blades

10 Exposed surface
No entry: powder-coated RAL 9010, pure white
P1 powder-coated, specify RAL CLASSIC colour




Order example: DID-F–2–S1/1500×123×
Heat exchanger2-pipe system
Nozzle variantMedium
Water connectionsØ12 mm pipe, plain tails
Length of unit1500 mm
Primary air spigot, diameter123 mm
Duct coveringNone
Fixing variantThreaded blind holes M6
Air control elementsNone
Exposed surfacePowder-coated RAL 9010 GU 50, pure white

Variants, Dimensions, Project-specific solutions

  • Varianten
  • DIMENSIONS
  • PROJECT-SPECIFIC SOLUTIONS


ØD

H




HS




123




221




147




158




256




164.5




198




296




184.5


,


K




200 – 2900 in mm increments




L




1200, 1500, 1800, 2100, 2400, 2700, 3000 mm




Dimensions – 1 side entry spigot

LN
1200HE158123 & 198
1500HE158123 & 198
1800HE158123 & 198
2100HE158123 & 198
2400HE158123 & 198
2700HE158123 & 198
3000HE158123 & 198
1200S1158123 & 198
1500S1158123 & 198
1800S1158123 & 198
2100S1158123 & 198
2400S1158123 & 198
2700S1158123 & 198
3000S1158123 & 198
1200S2198158
1500S2198158
1800S2198158
2100S2198158
2400S2198158
2700S2198158
3000S2198158
1200HP198158
1500HP198158
1800HP198158
2100HP198158
2400HP198158
2700HP198158
3000HP198158

Air-water systems offer both standard and project-specific solutions; they can be combined with luminaires or can have a top entry spigot. If required, we can also develop a suitable project-specific variant for your project. Simply contact your TROX contact partner.

Downloads

product information

certificates

production {"X-Frame-Options"=>"SAMEORIGIN", "X-XSS-Protection"=>"1; mode=block", "X-Content-Type-Options"=>"nosniff", "X-Download-Options"=>"noopen", "X-Permitted-Cross-Domain-Policies"=>"none", "Referrer-Policy"=>"strict-origin-when-cross-origin", "Content-Security-Policy"=>"frame-ancestors 'self' https://api.scrivito.com https://punchoutcommerce.com https://www.trox.de https://trox-extern.com https://psp40.onventis.com https://psp22.onventis.com https://trox4u.troxgroup.com", "Strict-Transport-Security"=>"max-age=31536000; includeSubDomains", "Content-Type"=>"text/html; charset=utf-8"}

Share page

Recommend this page

Recommend this page by sending a link by mail.

Fields marked with an (*) are required fields.

Share page

Thank you for your recommendation!

Your recommendation has been sent and should arrive shortly.

Contact

We are here for you

Please specify your message and type of request.
Tel.: +44 (0)1842 754545 | Fax: +44 (0)1842 763051

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +44 (0)1842 754545 | Fax: +44 (0)1842 763051

Contact

We are here for you

Please specify your message and type of request.
Tel.: +44 (0)1842 754545 | Fax: +44 (0)1842 763051

Attachment (max. 10MB)

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +44 (0)1842 754545 | Fax: +44 (0)1842 763051
